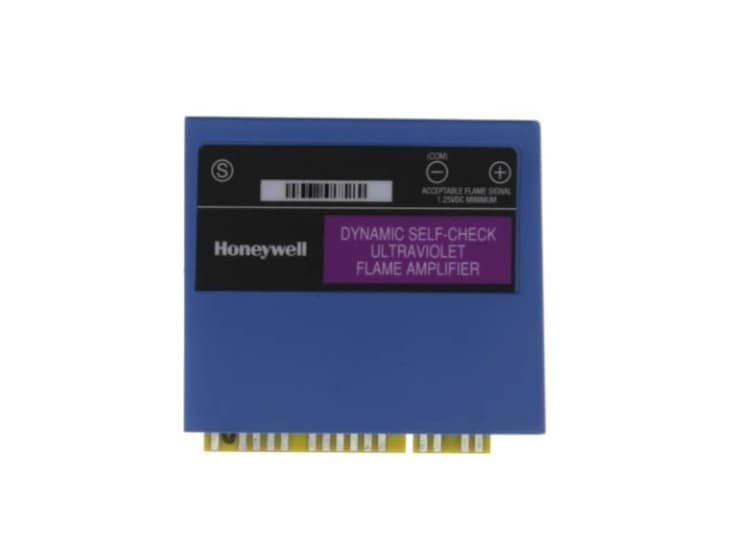

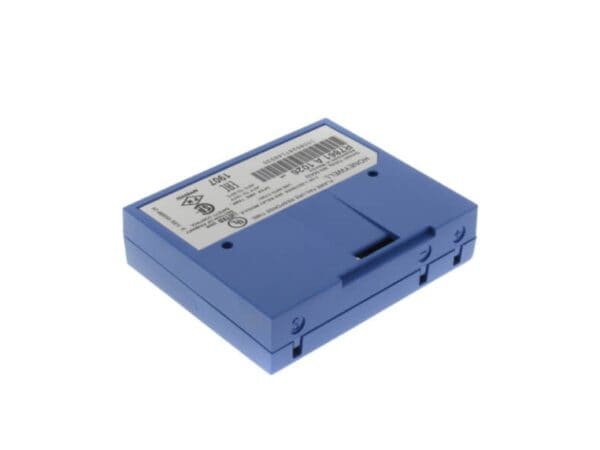

Honeywell R7861A1034 UV Flame Amplifier Card, FFRT 0.8 or 1.0 sec

The Honeywell R7861A1034 Dynamic Self-Check Ultraviolet Flame Signal Amplifier offers a Flame Failure Response Time of 0.8 or 1.0 seconds, Dynamic Self-Check, and works with the Ultraviolet Flame Sensor C7061. Designed for use with the Honeywell 7800 Series Primary Safety Control, it has a Purple color and a Flame Signal Strength ranging from 0.0 to 5 Vdc.

These solid-state plug-in amplifiers respond to flame detector inputs, indicating flame presence when used with Honeywell 7800 SERIES relay modules. They plug into the relay module through a keyed printed circuit board edge connector. Flame signal test jacks facilitate voltage measurement. Color-coded labels identify flame detection types. The Dynamic Self-Check Amplifier tests detectors and all electronic components in the 7800 SERIES relay module, initiating safety shutdown with flame detection system failure. It is compatible with existing Honeywell flame detectors (to be ordered separately).
