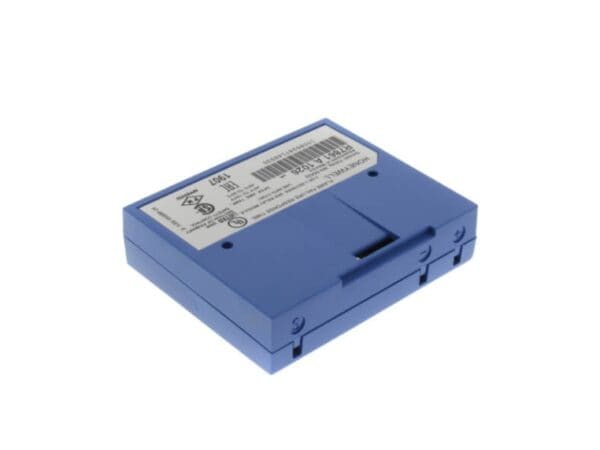

Honeywell R7861A1026 UV Flame Amplifier Card, FFRT 2.0 or 3.0 sec

The Honeywell R7861A1026 Dynamic Self-Check Ultraviolet Flame Signal Amplifier boasts a Flame Failure Response Time of 2.0 or 3.0 seconds, Dynamic Self-Check, and is designed for use with the Ultraviolet Flame Sensor C7061. Intended for compatibility with the 7800 Series Primary Safety Control, it features a Purple color and a Flame Signal Strength ranging from 0.0 to 5 Vdc.

These solid-state plug-in amplifiers respond to flame detector inputs, signaling the presence of flame when paired with Honeywell 7800 SERIES relay modules. They easily plug into the relay module via a printed circuit board edge connector, keyed for proper orientation. Flame signal test jacks facilitate the measurement of amplifier flame signal voltage. Color-coded labels identify flame detection types. The Dynamic Self-Check Amplifier tests detectors and all electronic components in the 7800 SERIES relay module, initiating safety shutdown in case of flame detection system failure. It is compatible with existing Honeywell flame detectors (to be ordered separately).
